Micro-nano bubbles enhanced degradation of emerging contaminants by ferrous-oxalate complexes: synergistic interaction between oxidation and coagulation

Abstract

The activation of oxygen by ferrous (Fe²⁺) to generate ·OH for contaminants degradation was inhibited due to the low utilization of oxygen, thus limiting its application in the practical environment. In this study, with the superior oxygenation capacity of micro-nano bubbles (MNBs) and the stronger O₂ activation capacity of Fe²⁺-oxalate complexes, the MNBs/Fe²⁺/oxalate (Ox) system was constructed with 4,4′-sulfonyldiphenol (BPS) as the main target emerging contaminants (ECs), and to investigate the enhancement contribution and reinforcement mechanism of the involvement of MNBs to the removal efficiency of ECs in the Fe²⁺/Ox system. It was shown that the MNBs/Fe²⁺/Ox system could effectively degrade four structurally diverse ECs. In this case, with BPS as the main target contaminant, adding MNBs could increase the BPS removal efficiency by about 35%. In the MNBs/Fe²⁺/Ox system, the degradation rate of BPS depended on the concentration of Fe^II(Ox)₂²⁻, while the extent of degradation was mainly governed by Fe^II(Ox)₂²⁻ and Fe^II(Ox)⁰. EPR and probe experiments showed that the reactive oxygen species (ROS) produced by the system and the iron hydroxide complexes produced by Fe³⁺ hydrolysis contributed to the degradation of BPS by oxidation and coagulation, respectively. In particular, ·OH and O₂^•− were the main reactive oxygen species produced by this system. Moreover, the involvement of MNBs significantly increased the formation of ROS and iron hydroxide complexes in the Fe²⁺/Ox system. The oxygenation process of MNBs used in this study enhanced the contaminants degradation performance of the Fe²⁺/Ox system and has broadened the application scope of MNBs.

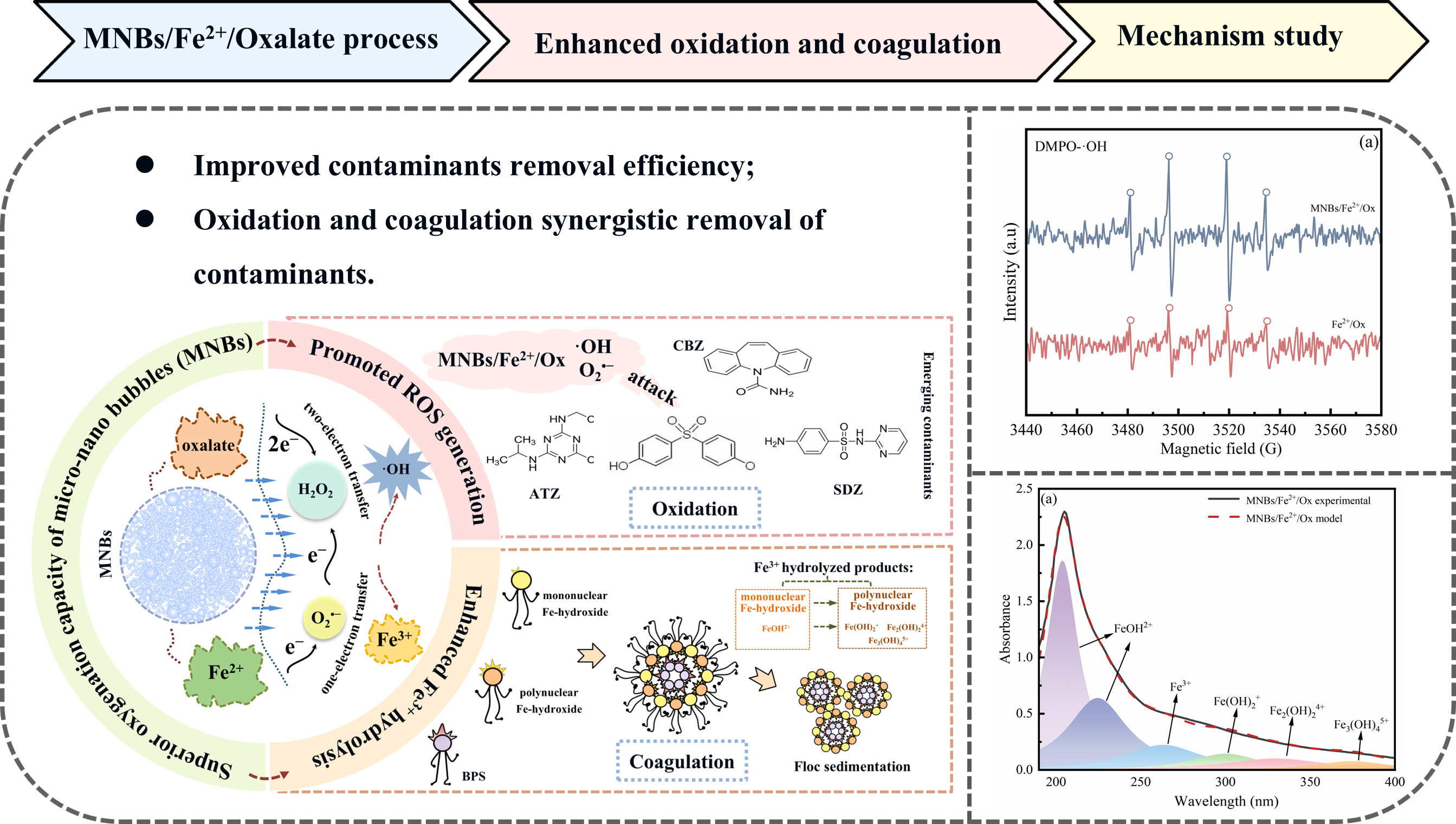

Graphical abstract

Keywords

Micro-nano bubbles / Ferrous / Molecular oxygen activation / Enhanced oxidation / Synergistic interaction

Highlight

	● The superior oxygenation capacity of MNB greatly improved pollutants degradation.
	● Degradation kinetics of BPS depended on the speciation of Fe2+-oxalate complexes.
	● Fe2+-oxalate activated O2 to yield ·OH by one and two electron transfer pathways.
	● MNBs boosted ROS formation while promoting iron hydroxide complexes generation.

Contents

	Introduction
	Materials and methods Reagents Experimental procedure Micro-nano bubble generator Analytical methods
	Results and discussion Optimum oxygenation conditions for MNBs Degradation of BPS in MNBs/Fe2+/Ox system Degradation mechanism of BPS in MNBs/Fe2+/Ox system Factors affecting BPS degradation pH Water matrix components Transformation products and degradation mechanisms of BPS
	Conclusions
	Conflict of Interests
	Acknowledgements
	Electronic Supplementary Material
	References

1 Introduction

The hydroxyl radical (·OH) is the strongest reactive oxygen species (ROS) in nature and can non-selectively degrade the vast majority of contaminants (Tong et al., 2016). In addition, ·OH can induce free radical chain reaction, which is especially suitable for removing difficult-to-degrade contaminants (Page et al., 2013; Chen et al., 2021; 2022). In recent years, more and more studies have shown that Fe²⁺ can be used for contaminant degradation by activating O₂ to produce other ROS such as ·OH (Minella et al., 2015; Tong et al., 2016; Zhang et al., 2019). Based on previous studies, it was confirmed that the mechanism of Fe²⁺ activation of O₂ to generate ROS is divided into two types (Keenan and Sedlak, 2008a; Zhang et al., 2019; 2022): 1) one-electron transfer mechanism: Fe²⁺ can first activate O₂ to form superoxide radicals (O₂^•−), which continue to be reduced by Fe²⁺ to form H₂O₂ (Eqs. (1) and (2)); 2) two-electron transfer mechanism: Fe²⁺ directly reduces O₂ to form H₂O₂ (Eq. (3)). The H₂O₂ generated through both pathways continues to react with Fe²⁺ to generate ·OH (Eq. (4)). However, the ability of Fe²⁺ alone to activate O₂ is very limited and the ROS yield is too low for direct application in environmental remediation.

(1){\mathrm{F}\mathrm{e}}^{2+}+{\mathrm{O}}_2\to {\mathrm{F}\mathrm{e}}^{3+}+{\mathrm{O}}_2^{\text{•}-}

(2){\mathrm{F}\mathrm{e}}^{2+}+{\mathrm{O}}_2^{\text{•}-}+{2\mathrm{H}}_2\mathrm{O}\to {\mathrm{F}\mathrm{e}}^{3+}+{\mathrm{H}}_2{\mathrm{O}}_2+2\mathrm{O}{\mathrm{H}}^{-}

(3)2{\mathrm{F}\mathrm{e}}^{2+}+{\mathrm{O}}_2+{2\mathrm{H}}_2\mathrm{O}\to {2\mathrm{F}\mathrm{e}}^{3+}+{\mathrm{H}}_2{\mathrm{O}}_2+2\mathrm{O}{\mathrm{H}}^{-}

(4){{\mathrm{H}}_2{\mathrm{O}}_2+\mathrm{F}\mathrm{e}}^{2+}\to \cdot {\mathrm{O}\mathrm{H}+\mathrm{F}\mathrm{e}}^{3+}+\mathrm{O}{\mathrm{H}}^{-}

ROS production in the Fe²⁺/O₂ system can be significantly promoted by the additional addition of oxygenated ligands. So far, the present studies have shown that organic ligands (such as ethylenediaminetetraacetic acid (EDTA) (Noradoun and Cheng, 2005; Belanzoni et al., 2009; Zhou et al., 2014; Fan et al., 2015), citrate (Luo et al., 2009; Lee et al., 2014; Jones et al., 2015; Xie et al., 2021), tartaric acid (Villegas-Guzman et al., 2017; Coleman et al., 2020; Ouyang et al., 2020) and oxalate (Ox) (Keenan and Sedlak, 2008b; Luo et al., 2009; Lee et al., 2014) can significantly increase the capacity of Fe²⁺ to activate O₂. The main reaction mechanism is that the ligand forms ferrous complexes with Fe²⁺ to improve the electron utilization efficiency of Fe²⁺ (Xie et al., 2021), decrease the redox potential of Fe²⁺/Fe³⁺ while inhibiting the precipitation of iron ions (Keenan and Sedlak, 2008b), and significantly promote the production of ROS. Compared to citrate, EDTA, malonate, and glyoxalate, oxalate has higher reducing power and lower ·OH reactivity (Lee et al., 2014) so that it does not significantly compete with the target contaminant, thus avoiding significant consumption of active species. In addition, the Fe²⁺-oxalate system activates O₂ more than the Fe²⁺-citrate system and the Fe²⁺-EDTA system (Luo et al., 2009), which further promotes the generation of active species based on efficiently enhancing the utilization of O₂.

Molecular oxygen is a green and very potential oxidizer. However, under natural environmental conditions, directly oxidizing contaminants with molecular oxygen is challenging because of spin-forbidden reactions (Metz and Solomon, 2001). However, the activation of molecular oxygen is possible through physical, chemical, and biological methods. By breaking the spin-forbidden reaction, reactive oxygen species (ROS) are generated to effectively degrade contaminants (Anglada et al., 2015; Wu et al., 2020; Li and Li, 2021; Sun et al., 2024). In recent years, micro-nano bubbles (MNBs) have shown significant advantages and development potential in water treatment processes (Agarwal et al., 2011; Li et al., 2014; Wang et al., 2024a) due to their features such as long residence time in the water, large specific surface area, and relatively high transfer efficiency (Zimmerman et al., 2011; Atkinson et al., 2019; Haris et al., 2020). Compared to conventional aeration, MNBs are a more effective water oxygenation technology due to their efficient mass transfer capabilities (Haris et al., 2020; Sakr et al., 2022). Though MNBs are broadly utilized in water treatment as an environmentally friendly process, few studies related to MNBs with Fe²⁺-ligand have been conducted until now. Suppose the MNBs aeration technology is applied to the Fe²⁺-ligand system. In that case, the superior oxygenation performance of MNBs is not only expected to increase the production of ROS to enhance oxidation but also has the potential to promote the formation of Fe³⁺ to enhance coagulation.

The widespread presence of emerging contaminants (ECs) in water has become a severe concern to water safety and human health (Schwarzenbach et al., 2006; Frankowski et al., 2021). ROS have been reported to be advantageous in promoting the degradation of new pollutants based on their strong oxidizing ability (Li et al., 2022; Wang et al., 2024b). In this study, oxalate was chosen as a ligand for Fe²⁺, and MNBs were combined with the Fe²⁺/Ox system to enhance O₂ utilization and ROS generation. Because Fe³⁺ produced by the oxidation of Fe²⁺ in the Fe²⁺/O₂ system can also be used as a coagulant, the addition of MNBs is not only able to increase the concentration of dissolved oxygen (DO) but also expected to have the enhanced efficiency of coagulation. The ability of the MNBs/Fe²⁺/Ox system to deal with ECs was explored. The mechanisms of ROS generation and BPS degradation were analyzed using free radical scavengers and probe compounds. The effects of diverse environmental factors on the degradation of BPS by this system were evaluated. Finally, the degradation pathway of BPS in the MNBs/Fe²⁺/Ox system was analyzed. This study was supposed to offer supportive data and a theoretical basis for the practical engineering application of MNBs/Fe²⁺/Ox system.

2 Materials and methods

2.1 Reagents

All chemicals used in this study were analytical grade, except for acetonitrile and methanol, which were of HPLC grade. 4,4′-sulfonyldiphenol (BPS, C₁₂H₁₀O₄S), sulfadiazine (SDZ, C₁₀H₁₀N₄O₂S), carbamazepine (CBZ, C₁₅H₁₂N₂O), atrazine (ATZ, C₈H₁₄ClN₅), p-hydroxybenzoic acid (p-HBA, C₇H₆O₃), 1,4-benzoquinone (PBQ, C₆H₄O₂), 2,2,6,6-Tetramethylpiperidine 1-oxyl (TEMPO, > 97%), Nitroblue tetrazolium chloride (NBT, C₄₀H₃₀N₁₀O₆·2Cl), Methyl phenyl sulfoxide (PMSO, C₇H₈OS) and Methyl phenyl sulphone (PMSO₂, C₇H₈O₂S) were analytical standard reagents obtained from Aladdin Industrial Co., Ltd., Shanghai, China. Ferrous sulfate (FeSO₄·7H₂O), sodium oxalate (Ox, Na₂C₂O₄), hydroxylamine hydrochloride, tert-butanol (TBA, C₆H₁₀O), sodium benzoate (BA, C₇H₅NaO₂), sodium hydroxide (NaOH), sodium chloride (NaCl), sodium sulfate (Na₂SO₄), sodium nitrate (NaNO₃), sodium bicarbonate (NaHCO₃), sodium carbonate (Na₂CO₃), calcium chloride (CaCl₂), magnesium chloride (MgCl₂), sodium acetate anhydrous (CH₃COONa), 1,10-Phenanthroline (C₁₂H₈N₂·4H₂O), ammonium acetate (CH₃COONH₄) were analytical grade and bought from Sinopharm Chemical Reagent Co., Ltd., Shanghai, China. Humic acid (HA ≥ 99%), 5,5-dimethyl-1-pyrroline-N-oxide (DMPO, > 97%), and 8-hydroxy-7-iodoquinolinium-5-sulphonate (C₉H₆INO₄S, ≥ 98.5%) were provided by Macklin Biochemicals Ltd., Shanghai, China. In this study, all the solutions used were made up by dissolving the required reagents in deionized water.

2.2 Experimental procedure

The procedure for preparing the BPS and sodium oxalate stock solutions required for the experiment was detailed in Text S1. A model of the experimental setup was shown in Fig. S1. The procedure for this experiment was shown below: 1 mL of BPS stock solution was placed in a 1000 mL jar and a certain amount of sodium oxalate stock solution was added to the BPS solution, and then the experiment was run on a magnetic stirrer. The micro-nano bubble generator then generated MNBs in solution at an inlet flow rate (Q_g) of 10 mL/min. After the micro-nano bubbles circulated in solution for 90 s, ferrous sulfate was added to initiate a chain reaction. To test the effect of different ROS on contaminants degradation during the reaction, the experiments were conducted using TBA (·OH scavenger) and PBQ (O₂^•− scavenger) to observe the changes in the concentration of contaminants. BA was used as a probe to test the concentration of ·OH and the p-HBA produced during the oxidation of BA by ·OH to evaluate the cumulative yield of ·OH. NBT as a probe for the detection of O₂^•−. Three times were repeated for all experiments to ensure reproducibility.

2.3 Micro-nano bubble generator

The micro-nano bubble generator for the paper was obtained from Shanghai Xingheng Technology Co. (LF-1500, China). MNBs were generated through the dissolved gas method by pressurization. In this study, the micro-nano bubble generator made use of air as the gas source. The pressure inside the micro-nano bubble generator was kept at 0.4 MPa during the experiments and only the inlet flow rate to the generator was varied (Q_g = 10, 20, 40, 60 mL/min).

2.4 Analytical methods

The concentrations of BPS, SDZ, CBZ, ATZ, PMSO, PMSO₂, and p-HBA were tested with an HPLC device (Ultima 3000, Thermo Scientific, USA) (Table S1). The degradation intermediates of BPS were detected by liquid mass spectrometry (LC-MS, Agilent 1260 Infinity II Prime, USA) as detailed in (Text S2). Determination of Fe²⁺ concentration using phenanthroline chromogenic method (Text S3), the total iron (Fe_tot) concentration was determined by reducing Fe³⁺ to Fe²⁺ with hydroxylamine hydrochloride, and the Fe³⁺ concentration was computed from the difference between the Fe_tot and Fe²⁺ concentrations. Detection of free radical generation by electron paramagnetic resonance (EPR, EPR, ZMXmicro-6/1, Hach, USA) using DMPO and TEMPO as ·OH, O₂^•− and ¹O₂ trapping agent. The species variation of iron in water samples was detected using a UV-visible spectrophotometer (U-3900, Hitachi, Japan), and data were collected in the range of 190–400 nm. The presence and distribution of individual bands of iron species were assessed using deconvolution methods (Text S4) (Yang et al., 2022). The DO concentration of water containing MNBs was measured using a portable dissolved oxygen meter (HQ40d, Hach, USA).

3 Results and discussion

3.1 Optimum oxygenation conditions for MNBs

Fig.1(a) showed the variation of solution dissolved oxygen concentration (DO) at four different inlet flow rates (Q_g = 10, 20, 40, and 60 mL/min) between 0 and 600 s of the micro-nano bubble generator operation. In summary, the DO concentration first rapidly increased with the operation of the MNBs generator and then gradually decreased. During the initial operation phase, the air was compressed into the water. The DO concentration of the water increased rapidly while a large number of MNBs were formed, and the water took on a milky color. After that, with the extended operation time, a large number of MNBs clustered into large bubbles and burst, reducing the DO concentration in the water. Moreover, it was found that the lower the inlet flow rate of the micro-nano bubble generator, the higher the peak DO level, which was 12.98 and 11.90 mg/L at Q_g = 10 and 20 mL/min, which were higher than 10.83 and 10.43 mg/L at Q_g = 40 and 60 mL/min, respectively. Also, DO reached its peak faster at Q_g = 10 and 20 mL/min than at higher intake flow rates Q_g = 40 and 60 mL/min. This is due to the fact that higher inlet rates reduce the ability of the device to generate micro-nano bubbles and also accelerate bubble aggregation and bursting, which in turn reduces the DO content (Zhou et al., 2022). Fig.1(b) showed the variation of DO concentration in water when the DO concentration peaked and the MNBs generator was stopped under different Q_g conditions. The results indicated that the DO content of the water remained relatively stable during the 30 min of standing. Meanwhile, the effect of pH on DO concentration was shown in Fig.1(c) DO concentration was maximum under neutral conditions, and too high or too low pH affected the bilayer structure of MNBs (Takahashi, 2005). In summary, the optimal oxygenation condition for MNBs was set as Q_g = 10 mL/min, aeration time = 90 s, and pH = 7.

3.2 Degradation of BPS in MNBs/Fe²⁺/Ox system

The degradation of BPS under different conditions was investigated prior to the batch experiments. As shown in Fig.2(a), Fe²⁺ and oxalate could not alone degrade BPS. The degradation of BPS by MNBs/Fe²⁺ increased to about 10% after the involvement of MNBs, which was attributed to the fact that the addition of MNBs significantly increased the DO concentration of the water. The degradation of BPS in the Fe²⁺/Ox system was 48% in 120 min. However, after the involvement of MNBs, the degradation efficiency of BPS reached 83% (an increase of about 1.7 times). The addition of MNBs could significantly promote the degradation of BPS by the Fe²⁺/Ox system.

Furthermore, the changes in DO concentration and pH during the reaction were monitored. As shown in Figs. S2 and S3, the participation of MNBs could significantly increase the concentration of DO in the system, and the DO concentration was consistently higher than the DO concentration in the initial water column throughout the reaction. This further confirmed the superior oxygenation performance of MNBs. The pH value was basically stabilized at about 7, which indicated that the MNBs/Fe²⁺/Ox system had better stability.

It has been reported that Fe²⁺/Ox complexes exist mainly as Fe^II(Ox)₂²⁻ and Fe^II(Ox)⁰ in water, which can be used to reduce O₂ by one or two-electron transfer reactions (Park et al., 1997; Strathmann and Stone, 2002). In the Fe²⁺/Ox system, since Fe^II(Ox)₂²⁻ has a much smaller reduction potential (E⁰) than Fe^II(Ox)⁰ [E⁰(Fe^III(Ox)₂⁻/Fe^II(Ox)₂²⁻) = + 0.256 V_NHE vs E⁰ (Fe^III(Ox)⁺/Fe^II(Ox)⁰) = + 0.503 V_NHE], so the transfer of electrons from Fe^II(Ox)₂²⁻ to O₂ (or H₂O₂) is considerably quicker than Fe^II(Ox)⁰. Therefore, contaminant degradation rates mainly depends on the Fe^II(Ox)₂²⁻ concentration (Strathmann and Stone, 2002; Lee et al., 2014). In addition, the extent of contaminant degradation depends on the total concentration of Fe^II(Ox)⁰ and Fe^II(Ox)₂²⁻, which can also reduce O₂ and H₂O₂, although Fe^II(Ox) ⁰ reacts slowly (Lee et al., 2014).

The degradation of BPS by the MNBs/Fe²⁺/Ox system was investigated by varying the ratio of Fe²⁺/Ox. In this system, the amount of BPS degradation first increased and then declined with increasing oxalate concentration (shown in Fig.2(b)), which was attributed to the fact that oxalate itself could react with ·OH (k = 4.7 × 10⁷ M⁻¹·s⁻¹ with HC₂O₄⁻ and k = 7.7 × 10⁶ M⁻¹·s⁻¹ with C₂O₄²⁻) (Lee et al., 2014). Under higher oxalate concentrations, excessive oxalate increased the risk of additional consumption of ·OH and thus reduced the oxidation capacity of the reaction system, leading to a decrease in BPS degradation. However, the rate of the BPS degradation increased when the oxalate concentration increased, as shown in Fig.2(c). That was because oxalate at higher concentrations facilitated the generation of Fe^II(Ox)₂²⁻ species, which are more reactive than Fe^II(Ox)⁰ species from a thermodynamic perspective (Strathmann and Stone, 2002). In addition, the E⁰ value of the Fe²⁺/Ox complex in solution decreased with increasing oxalate concentration (Chandra and Jeffrey, 2005). According to Fig.2(d), when the concentration of oxalate was constant and the concentration of Fe²⁺ varied, the amount of BPS degradation increased with the increase of Fe²⁺ concentration. It was because the increase in Fe²⁺ concentration led to the increase of Fe^II(Ox)⁰ and Fe^II(Ox)₂²⁻ concentration, which accelerated oxygen consumption and promoted the degradation of BPS. Except for BPS, the other three emerging contaminants, ATZ, CBZ, and SDZ, were degraded to a certain extent in the MNBs/Fe²⁺/Ox system (shown in Fig. S4). Therefore, the MNBs/Fe²⁺/Ox process had universal applicability.

3.3 Degradation mechanism of BPS in MNBs/Fe²⁺/Ox system

To detect what kinds of ROS were generated in the MNBs/Fe²⁺/Ox system, the EPR method was first used in this study to determine the types of ROS. The results were shown in Fig.3(a) and Fig.3(b). Intense four-line ESR signals of DMPO-·OH(1:2:2:1) and DMPO-O₂^•−(1:1:1:1) were measured in the reaction system with or without the involvement of MNBs. Singlet oxygen(¹O₂) and Fe(IV) were not observed in this reaction system (Figs. S5 and S6). Besides, the heights of the characteristic peaks in the EPR indicated that the characteristic peaks of ·OH and O₂^•− were significantly stronger when MNBs were involved into the system than the system without the involvement of MNBs. The above results demonstrated that the involvement of MNBs significantly boosted the generation of ROS in the Fe²⁺/Ox system. Meanwhile, the results of detecting the change of ·OH concentration in different systems in Fig. S7 and the momentary concentration variation of O₂^•− in the reaction system with or without the involvement of MNBs shown in Fig. S8 agreed with the above conclusion. Next, to further explore the ROS contribution to BPS degradation in the system, TBA (k_TBA,•OH = 6.0 × 10⁸ M⁻¹·s⁻¹) and PBQ (k_{\mathrm{P}\mathrm{B}\mathrm{Q},{\mathrm{O}}_2^{\text{•}-}} = 9.1 × 10⁸ M⁻¹·s⁻¹) were utilized to capture ·OH and O₂^•− (Zhang et al., 2022; 2025). The optimal concentration of scavenger based on the results of numerous trials was shown in Fig. S9. It was shown in Fig. S10 that the scavengers addition prevented the degradation of BPS to various degrees, which provided the essential roles of ·OH and O₂^•− on BPS degradation. When both TBA and PBQ were also added to the system, there was just about 18% degradation of BPS, which was attributed to the role of Fe³⁺ coagulation. Fig.3(c) demonstrated the variation of iron content in the Fe²⁺/Ox system in the presence or absence of MNBs. It could be distinctly concluded that the involvement of MNBs promoted the oxidation of Fe²⁺ and the formation of Fe³⁺.

The previous studies reported that ·OH production in the Fe²⁺/O₂ system had both a one-electron transfer mechanism for O₂ and a two-electron transfer mechanism for O₂ (Keenan and Sedlak, 2008a; Zhang et al., 2019; 2022). PBQ was added to eliminate not only the impact of O₂^•− but also the subsequent formation of ·OH by a one-electron-transfer route. At this point, the BPS was only degraded by the ·OH produced by the double electron transfer mechanism and coagulation. The addition of TBA eliminated the effect of ·OH produced by both pathways, and the degradation of BPS was mainly a function of O₂^•− and coagulation. Therefore, the contribution of one-electron transfer of ·OH could be calculated by subtracting the contribution of O₂^•−, two-electron transfer of ·OH, and coagulation. Fig.3(d) showed the contribution of ·OH, O₂^•− and coagulation to BPS degradation, with oxidation contributing 78% and coagulation 22%.

In addition, Fe³⁺ ions could be readily hydrolyzed to produce positively charged monomer and polymer species. These species have been demonstrated to be the key substances driving coagulation (Jiménez et al., 2012). Therefore, the detection of these substances in the MNBs/Fe²⁺/Ox system was beneficial for analyzing the enhancement of coagulation by MNBs in this system. Fig.4(a) and Fig.4(b) displayed the UV spectra of the supernatant in the Fe²⁺/Ox system with and without MNBs, respectively. For each spectrum, six Gaussian bands in the 190–400 nm range, with the peaks at 205 and 220 nm represented FeOH²⁺ mononuclear iron hydroxide complexes; the peak at 260 nm represented Fe³⁺; and the peaks at 300, 335, and 372 nm represented Fe(OH)₂⁺, Fe₂(OH)₂⁴⁺, and Fe₃(OH)₄⁵⁺ polynuclear iron hydroxide complexes, respectively (Yang et al., 2021; 2023; Zhang et al., 2024). Although there was no difference between the MNBs/Fe²⁺/Ox and Fe²⁺/Ox systems in terms of iron species, the peak intensity of the hydrolysis products was significantly elevated when MNBs were involved in the system. In addition, the data in Fig.4(c) and Fig.4(d) showed that the concentration of FeOH²⁺ and Fe(OH)₂⁺ were significantly higher in the presence of MNBs in the system than in the absence of MNBs. The above results distinctly indicated that the addition of MNBs played a significant role in the enhancement of coagulation.

The coagulation effect in the system was closely related to the floc properties (Zhang et al., 2024). The influence of MNB involvement on floc properties during floc formation in the MNBs/Fe²⁺/Ox system suggested that the involvement of MNB in this system played a role in enhancing coagulation. As shown in Figs. S11 and S12, when there were MNBs involved in the system, the flocs formed after the reaction were large and flaky, while when there were no MNBs in the system, the flocs were fine and unaggregated. Besides, the computational analysis of the two-dimensional fractal dimension (D_f) of the flocs and the results of the particle size detection analysis showed (shown in Fig. S13) that the flocs formed in the system with the participation of MNBs had larger particle sizes and D_f, which indicated that the flocs formed had a higher degree of densification. Meanwhile, the EDS energy spectrum analysis of the flocs showed (Fig. S14) that the proportion of “S” elements in the flocs was significantly higher when MNBs were involved than when they were not and that the flocs generated in the system might have a certain sweeping ability (Dong et al., 2015; Sun et al., 2015), and the sweeping effect was more pronounced when the flocs formed were larger.

According to the above results, Fig.5 provides the main removal mechanism for the degradation of BPS by the MNBs/Fe²⁺/Ox system, highlighting the collaborative action between the oxidation and coagulation processes. In the MNBs/Fe²⁺/Ox system, ·OH and O₂^•− were detected as the main ROS species in the system. Moreover, the engagement of MNBs could significantly promote the production of ·OH and O₂^•−; thus, the involvement of MNBs played an obvious role in enhancing the oxidation. While promoting the generation of ROS, MNBs also accelerated the oxidation of Fe²⁺ and the in situ and sequential generation of Fe³⁺. The continuous conversion of Fe²⁺ to Fe³⁺ led to the generation of mononuclear iron hydroxide and polynuclear iron hydroxide, which were significantly increased in concentration when MNBs were involved. Therefore, the participation of MNBs significantly enhanced the coagulation capability of the system. Overall, in the MNBs/Fe²⁺/Ox system, MNBs could not only enhance the oxidation, but also the coagulation and the ROS oxidation synergized with the Fe³⁺ coagulation process to effectively degrade the BPS.

3.4 Factors affecting BPS degradation

It has been shown that the Fe²⁺/Ox system has different oxidation mechanisms under different acid-base conditions (Lee et al., 2014; Yuan et al., 2019). At higher pH conditions, it was not beneficial for the Fe²⁺/Ox system to generate active species to degrade the contaminants. Therefore, the degradation mechanism of BPS by MNBs/Fe²⁺/Ox system at different pH conditions was bound to be different. Various anions and cations, large organic matter like humic acid (HA), and small organic acids such as citric acid (CA) were often present in the actual environment. These co-existing substances can affect the degradation of BPS by MNBs/Fe²⁺/Ox system. However, the effects of these environmental co-existing components on the degradation of BPS by MNBs/Fe²⁺/Ox system have not been reported. Therefore, this study investigated the impact of different environmental influences (pH, anions and cations, macromolecules of organic matter, and small molecules of organic acids) on the degradation of BPS by the MNBs/Fe²⁺/Ox system, the details of which are shown below.

3.4.1 pH

The impact of various pH values (pH range 5.0–9.0) on the degradation of BPS in the MNBs/Fe²⁺/Ox system was studied. As shown in Fig.6(a), the degradation of BPS was found to decrease with increasing pH in the experimental pH range. Different solution pH values effect the Fe²⁺-oxalate complexes speciation (Park et al., 1997; Strathmann and Stone, 2002). As the pH increases, more Fe²⁺ complexes with OH⁻ ions produce unreactive species such as Fe^II(OH)₂⁰, Fe^II(OH)⁺ and Fe^II(OH)₃⁻, which led to a reduction in the total Fe²⁺-oxalate complexes content and further inhibits the degradation of BPS (Naka et al., 2006). According to Fig.6(b), the variations in the concentration of ·OH generated by the MNBs/Fe²⁺/Ox system at different pH conditions verified the above findings.

3.4.2 Water matrix components

The water matrix components had remarkable influences on the degradation of ECs. The removal of BPS was associated with representative inorganic cations (Ca²⁺, Mg²⁺), anions (Cl⁻, NO₃⁻, CO₃²⁻, HCO₃⁻), macromolecular organic matter HA, and small molecular organic acids CA. As shown in Fig.7, the addition of Ca²⁺ and Mg²⁺ inhibited the degradation of BPS, mainly because Ca²⁺ and Mg²⁺ would form CaC₂O₄ and MgC₂O₄ sediments with C₂O₄²⁻ (Luo et al., 2009), which inhibited the formed of Fe²⁺-oxalate complexes, leading to a decrease in ROS amount and the oxidative capacity of the system. The effect of Cl⁻ and NO₃⁻ on BPS degradation was negligible within the experimental range. Meanwhile, the degradation of BPS decreased with the increase of CO₃²⁻ and HCO₃⁻ concentrations. This was attributed to two main reasons: first, CO₃²⁻ and HCO₃⁻ have a certain reactivity with ·OH (Yang et al., 2016; Long et al., 2023), which in turn led to a decrease in ·OH concentration; second, CO₃²⁻ and HCO₃⁻ would increase the pH of the system, which was unfavorable for the generation of system ROS, thus reducing the oxidative capacity of the system. Moreover, the addition of HA inhibited the degradation of BPS, which was because HA would compete with BPS for ·OH, and the increase in the concentration of HA would significantly reduce the ·OH concentration in the reaction system (Fig. S15(a)). CA addition promoted the production of ·OH and the degradation of BPS in the process of reaction. When the CA was raised from 0 to 1.0 mmol/L, the ·OH concentration increased about 1.5 times (Fig. S15(b)). That is because CA is also an organic ligand that reacts with Fe²⁺ to form Fe²⁺-citric acid complexes, which promotes the production of more reactive species in the system and inhibits the formation of non-reactive species (Pham and Waite, 2008; Zhang and Zhou, 2019; Ahile et al., 2020).

3.5 Transformation products and degradation mechanisms of BPS

The degradation intermediates of BPS in the MNBs/Fe²⁺/Ox system were detected and analyzed by LC-MS to obtain a more comprehensive understanding of the degradation process of BPS in the MNBs/Fe²⁺/Ox system. A total of 20 transformation products (TPs) of BPS were identified, with hydroxyl and sulfonyl groups present in most of the structures, as listed in Table S2. Based on the comparison between the transformation products detected in this study and previous literature, this study proposed a potential pathway for BPS degradation in the MNBs/Fe²⁺/Ox system. As shown in Fig.8, there were two degradation pathways of BPS in the MNBs/Fe²⁺/Ox system.

First pathway: the active species ·OH produced in the system attacked the two benzene rings of BPS. BPS underwent hydroxylation on the benzene ring in the presence of ·OH, which occurred mainly on the neighboring carbon of the hydroxyl group and yielded the hydroxylation products of BPS, 4-((4-hydroxyphenyl)sulfonyl)benzene-1,2-diol (TP1) and 4,4'-sulfonylbis(benzene-1,2-diol) (TP2) (Lee et al., 2023; Nejumal et al., 2023). Subsequently, TP1 and TP2 reacted in a ring-opening reaction to form the product 3,3′-(sulfonyldimethylenediyl)dipentan-3-ol (TP3). TP2 could also be stripped of SO₂ by an attack on the S-C bond between the sulfur atom and the two neighboring carbon atoms by a ROS substance resulting in breakage to produce 3,3′,4,4'-tetrahydroxybiphenyl (TP4) and TP4 by a further ring-opening reaction to produce 4-hexylresorcinol (TP5) or 7-oxododecan-11-enoic acid (TP6).

Second pathway: ROS attacked the electron-rich sulfur center, causing one of the S-C bonds to break. This reaction released hydroxybenzenesulfonic acid (TP7) and phenol (TP16) (Liu et al., 2019; Chen et al., 2024). TP7 could undergo a ring-opening reaction to form thiodipropionic acid (TP13), diallyl sulfone (TP14), and 6-hydroxyhexane-1-sulfonic acid (TP15), or it could be further oxidized to form 4-sulfobenzoic acid (TP8) and 4-sulfobenzaldehyde (TP9). The S-C bonds in TP8 and TP9 were broken to form benzoic acid (TP10), benzaldehyde (TP11), and sulfuric acid (TP12) (Frankowski et al., 2021; Nejumal et al., 2023). TP16 generated the degradation product hexahydroxybenzene (TP17) by the addition of hydroxyl groups, and TP17 underwent a ring-opening reaction to generate adipic acid (TP18) and 2-hydroxyadipic acid (TP19) or an oxidative reaction to generate o-benzoquinone (TP20) (Chen et al., 2024). As the reaction continues, these products may be further decomposed and finally mineralized to CO₂ and H₂O.

4 Conclusions

Dissolved oxygen concentration plays a vital role in the oxidizing effect of the Fe²⁺/Ox system, and one of the characteristics of MNBs is that it has a remarkable oxygenating effect. Therefore, this study proposed the combination of MNBs with the Fe²⁺/Ox system for the removal of ECs to investigate the enhancement effect and mechanism of MNBs on the degradation of contaminants by the Fe²⁺/Ox system. The specific conclusions were as follows:

1) The presence of MNBs could significantly enhance the degradation efficiency of BPS in the Fe²⁺/Ox system. The degradation rate of BPS in the MNBs/Fe²⁺/Ox system mainly depended on the concentration of Fe^II(Ox)₂²⁻, and the extent of degradation was jointly decided by Fe^II(Ox)₂²⁻ and Fe^II(Ox)⁰ together.

2) Regarding the mechanism of BPS degradation by MNBs/Fe²⁺/Ox systems, it was determined the role of MNBs in enhancing oxidation and coagulation. In the MNBs/Fe²⁺/Ox system, ·OH and O₂^•− were the main ROS produced in the system. Oxidation played about 78% of the role in the degradation of BPS. Significantly, this oxidation could also promote in situ and sequential generation of mononuclear and polynuclear iron hydroxide complexes in the system, greatly contributing to BPS removal by coagulation. In particular, the contribution of coagulation to BPS degradation was about 22%.

3) This study systematically assessed the effects of pH and water matrix components on the removal of BPS. Higher pH was unfavorable for ROS generation and BPS removal. In the water matrix components, high concentrations of Ca²⁺ and Mg²⁺ would inhibit the formation of Fe²⁺-oxalate complexes. CO₃²⁻ and HCO₃⁻ would compete with BPS for ·OH and simultaneously lead to an increase in the pH of the reaction system, which was unfavorable for the generation of ·OH.
