Directional amine-based solvent extraction for simultaneous enhanced water recovery, salt separation and effective descaling from hypersaline brines

Highlights

● Simultaneous water recovery and salt separation from hypersaline brine is feasible.

● Water recovery shows an obvious boundary at saline concentration of 115 g/L.

● Cl^– removal is exponentially correlated with specific water extraction efficiency.

● Radical precipitation of Mg²⁺ and Ca²⁺ leads to more amine residues in raffinate.

Abstract

The feasibility of simultaneous water recovery, salt separation and effective descaling of hypersaline brine was investigated by diisopropylamine (DIPA)-based directional solvent extraction (DSE), using diluted/concentrated seawater with initial saline concentration range of 12–237 g/L at extraction temperatures of 5 and 15 °C, respectively. The water recovery shows an obvious boundary at saline concentration of 115 g/L under dual effect of specific water extraction efficiency and extraction cycles. High Cl^– ion concentration in product water is in sharp contrast to the nearly complete removal of SO₄^2– and hardness ions, indicating that DIPA-based DSE process indeed achieved efficient separation and purification of Cl^– ion from hypersaline brines. Especially, the radical precipitation of Mg²⁺ and Ca²⁺ ions in form of Mg(OH)₂ and CaCO₃ demonstrates effective descaling potential, although it leads to more DIPA residues in dewatered raffinate than product water. Moreover, an exponential correlation between the Cl^– removal efficiency and specific water extraction efficiency further reveals the intrinsic relationship of water extraction process and transfer of Cl^– ion to the product water. Overall, the study provides a novel approach for integrating the water recovery and separation of Cl^– ion from ultra-high-salinity brines with radical precipitation of Mg²⁺ and Ca²⁺ ions in one step.

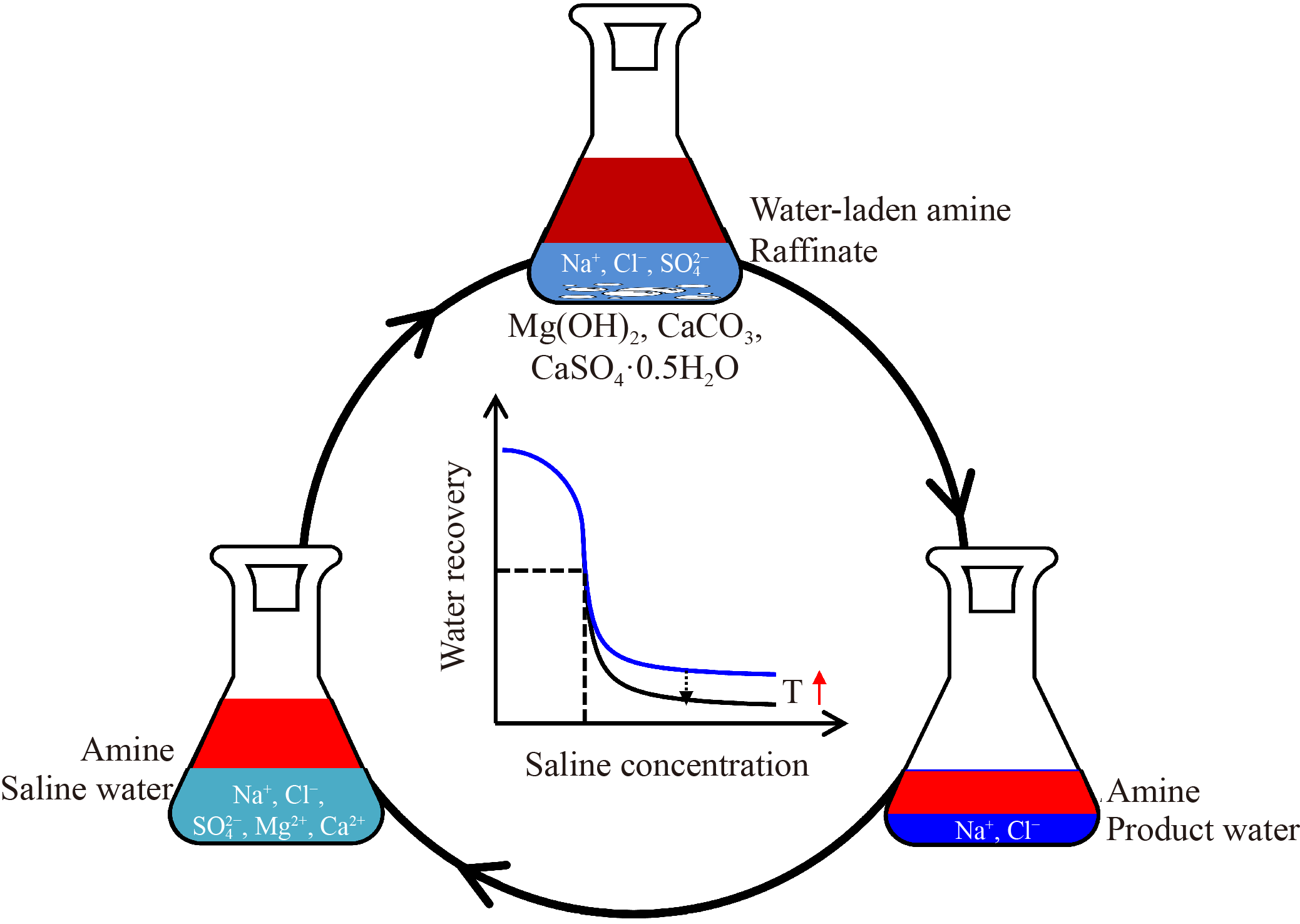

Graphical abstract

Keywords

Hypersaline brines / Directional solvent extraction / Salt separation / Ca²⁺ and Mg²⁺ descaling

References

[1] Bajpayee A , Luo T , Muto A , Chen G . (2011). Very low temperature membrane-free desalination by directional solvent extraction. Energy & Environmental Science, 4(5): 1672–1675

[2] Barbosa G D , Bara J E , Weinman S T , Turner C H . (2022). Molecular aspects of temperature swing solvent extraction for brine desalination using imidazole-based solvents. Chemical Engineering Science, 247: 116866

[3] Barbosa G D , Liu X , Bara J E , Weinman S T , Turner C H . (2021). High-salinity brine desalination with amine-based temperature swing solvent extraction: a molecular dynamics study. Journal of Molecular Liquids, 341: 117359

[4] Boo C , Billinge I H , Chen X , Shah K M , Yip N Y . (2020). Zero liquid discharge of ultrahigh salinity brines with temperature swing solvent extraction. Environmental Science & Technology, 54(14): 9124–9131

[5] Boo C , Qi H , Billinge I H , Shah K M , Fan H , Yip N Y . (2021). Thermomorphic hydrophilicity base-induced precipitation for effective descaling of hypersaline brines. ACS ES&T Engineering, 1(9): 1351–1359

[6] Boo C , Winton R K , Conway K M , Yip N Y . (2019). Membrane-less and non-evaporative desalination of hypersaline brines by temperature swing solvent extraction. Environmental Science & Technology Letters, 6(6): 359–364

[7] Chen F , Zhang Z , Zeng F , Yang Y , Li X . (2021). Pilot-scale treatment of hypersaline coal chemical wastewater with zero liquid discharge. Desalination, 518: 115303

[8] Choi O K , Seo J H , Kim G S , Hendren Z , Kim G D , Kim D , Lee J W . (2021). Non-membrane solvent extraction desalination (SED) technology using solubility-switchable amine. Journal of Hazardous Materials, 403: 123636

[9] Deepti U , Bora M K . (2021). Promising integrated technique for the treatment of highly saline nanofiltration rejected stream of steel industry. Journal of Environmental Management, 300: 113781

[10] Deepti A , Sinha P , Biswas S , Sarkar U , Bora M K . (2020). Separation of chloride and sulphate ions from nanofiltration rejected wastewater of steel industry. Journal of Water Process Engineering, 33: 101108

[11] Deshmukh A , Foo Z H , Stetson C , Lee H , Orme C J , Wilson A D , Lienhard J H . (2022). Thermodynamics of solvent-driven water extraction from hypersaline brines using dimethyl ether. Chemical Engineering Journal, 434: 134391

[12] Jarin M , Dou Z , Gao H , Chen Y , Xie X . (2023). Salinity exchange between seawater/brackish water and domestic wastewater through electrodialysis for potable water. Frontiers of Environmental Science & Engineering, 17(2): 16

[13] Jia X , Li K , Wang B , Zhao Z , Hou D , Wang J . (2022). Membrane cleaning in membrane distillation of reverse osmosis concentrate generated in landfill leachate treatment. Water Science and Technology, 85(1): 244–256

[14] Kim M , Choi O K , Cho Y , Lee J W , Cho A E . (2020). Elucidation of the desalination mechanism of solvent extraction method through molecular modeling studies. Desalination, 496: 114704

[15] Lin S . (2020). Energy efficiency of desalination: Fundamental insights from intuitive interpretation. Environmental Science & Technology, 54(1): 76–84

[16] Liu C , Wang W , Yang B , Xiao K , Zhao H . (2021). Separation, anti-fouling, and chlorine resistance of the polyamide reverse osmosis membrane: from mechanisms to mitigation strategies. Water Research, 195: 116976

[17] Luo T , Bajpayee A , Chen G . (2011). Directional solvent for membrane-free water desalination: a molecular level study. Journal of Applied Physics, 110(5): 054905

[18] Ma H , Wang H , Tian C , Wang L , Yuan W , Qi Y , Ma H , Chao Z , Lv W . (2021). An integrated membrane- and thermal-based system for coal chemical wastewater treatment with near-zero liquid discharge. Journal of Cleaner Production, 291: 125842

[19] Ogunbiyi O , Saththasivam J , Al-Masri D , Manawi Y , Lawler J , Zhang X , Liu Z . (2021). Sustainable brine management from the perspectives of water, energy and mineral recovery: a comprehensive review. Desalination, 513: 115055

[20] Panagopoulos A . (2021). Energetic, economic and environmental assessment of zero liquid discharge (ZLD) brackish water and seawater desalination systems. Energy Conversion and Management, 235: 113957

[21] Peerless J S , Gulyuk A V , Milliken N J , Kim G D , Reid E , Lee J W , Kim D , Hendren Z , Choi Y C , Gao Y L . (2023). Role of nanoscale morphology on the efficiency of solvent-based desalination method. ACS ES&T Water, 3(2): 400–409

[22] Rish D , Luo S , Kurtz B , Luo T . (2014). Exceptional ion rejection ability of directional solvent for non-membrane desalination. Applied Physics Letters, 104(2): 024102

[23] Sanap D B , Kadam K D , Narayan M , Kasthurirangan S , Nemade P R , Dalvi V H . (2015). Analysis of saline water desalination by directed solvent extraction using octanoic acid. Desalination, 357: 150–162

[24] Sappidi P , Barbosa G , Rabideau B D , Weinman S T , Turner C H . (2021). Molecular simulation of high-salinity brines in contact with diisopropylamine and tripropylamine solvents. Industrial & Engineering Chemistry Research, 60(21): 7917–7925

[25] Shah K M , Dach E , Winton R , Fan H , Yip N Y . (2023). Phase equilibria insights into amine-water-NaCl interactions in liquid-liquid biphasic systems for temperature swing solvent extraction desalination. Desalination, 548: 116259

[26] Shi J , Huang W , Han H , Xu C . (2020). Review on treatment technology of salt wastewater in coal chemical industry of China. Desalination, 493: 114640

[27] Shi Y T , Meng X , Yao L , Tian M . (2021). A full-scale study of nanofiltration: separation and recovery of NaCl and Na₂SO₄ from coal chemical industry wastewater. Desalination, 517: 115239

[28] Song W , Lee L Y , Liu E , Shi X , Ong S L , Ng H Y . (2020). Spatial variation of fouling behavior in high recovery nanofiltration for industrial reverse osmosis brine treatment towards zero liquid discharge. Journal of Membrane Science, 609: 118185

[29] Tian X , Yu H , Yang J , Zhang X , Zhao M , Yang Y , Sun W , Wei Y , Zhang Y , Wang J . . (2022). Preparation of reverse osmosis membrane with high permselectivity and anti-biofouling properties for desalination. Frontiers of Environmental Science & Engineering, 16(7): 89

[30] Tong T , Elimelech M . (2016). The global rise of zero liquid discharge for wastewater management: drivers, technologies, and future directions. Environmental Science & Technology, 50(13): 6846–6855

[31] Xiong R , Wei C . (2017). Current status and technology trends of zero liquid discharge at coal chemical industry in China. Journal of Water Process Engineering, 19: 346–351

[32] Xue W , Zaw M , An X , Hu Y , Tabucanon A S . (2020). Sea salt bittern-driven forward osmosis for nutrient recovery from black water: a dual waste-to-resource innovation via the osmotic membrane process. Frontiers of Environmental Science & Engineering, 14(2): 32

[33] Zhang H , Lai Y , Yang X , Li C , Dong Y . (2022). Non-evaporative solvent extraction technology applied to water and heat recovery from low-temperature flue gas: parametric analysis and feasibility evaluation. Energy, 244: 123062

[34] Zhang X , Zhao W , Zhang Y , Jegatheesan V . (2021). A review of resource recovery from seawater desalination brine. Reviews in Environmental Science and Biotechnology, 20(2): 333–361

Acknowledgements

This study was supported financially by a grant from Shougang Group Co., Ltd., China (No. K202200134Y). We thank the staff members of Research Center of Environmental Technology in Water Pollution Source Identification and Precise Supervision, School of Environment, Tsinghua University who supported us in the analysis of ions and DIPA solvent in product water.

Conflict of Interests

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
