Functional flax fiber with UV-induced switchable wettability for multipurpose oil-water separation

Highlights

● A PAA-ZnO-HDTMS flax fiber with UV-induced switchable wettability was developed.

● The property of flax fiber could be switched from hydrophobicity to hydrophilicity.

● The mechanism of the acquired UV-induced switchable wettability was discussed.

● The developed flax fiber was successfully used for multipurpose oil-water separation.

Abstract

The large number of oily wastewater discharges and oil spills are bringing about severe threats to environment and human health. Corresponding to this challenge, a functional PAA-ZnO-HDTMS flax fiber with UV-induced switchable wettability was developed for efficient oil-water separation in this study. The developed flax fiber was obtained through PAA grafted polymerization and then ZnO-HDTMS nanocomposite immobilization. The as-prepared PAA-ZnO-HDTMS flax fiber was hydrophobic initially and could be switched to hydrophilic through UV irradiation. Its hydrophobicity could be easily recovered through being stored in dark environment for several days. To optimize the performance of the PAA-ZnO-HDTMS flax fiber, the effects of ZnO and HDTMS concentrations on its switchable wettability were investigated. The optimized PAA-ZnO-HDTMS flax fiber had a large water contact angle (~130°) in air and an extremely small oil contact angle (~0°) underwater initially. After UV treatment, the water contact angle was decreased to 30°, while the underwater oil contact angle was increased to more than 150°. Based on this UV-induced switchable wettability, the developed PAA-ZnO-HDTMS flax fiber was applied to remove oil from immiscible oil-water mixtures and oil-in-water emulsion with great reusability for multiple cycles. Thus, the developed flax fiber could be further fabricated into oil barrier or oil sorbent for oil-water separation, which could be an environmentally-friendly alternative in oil spill response and oily wastewater treatment.

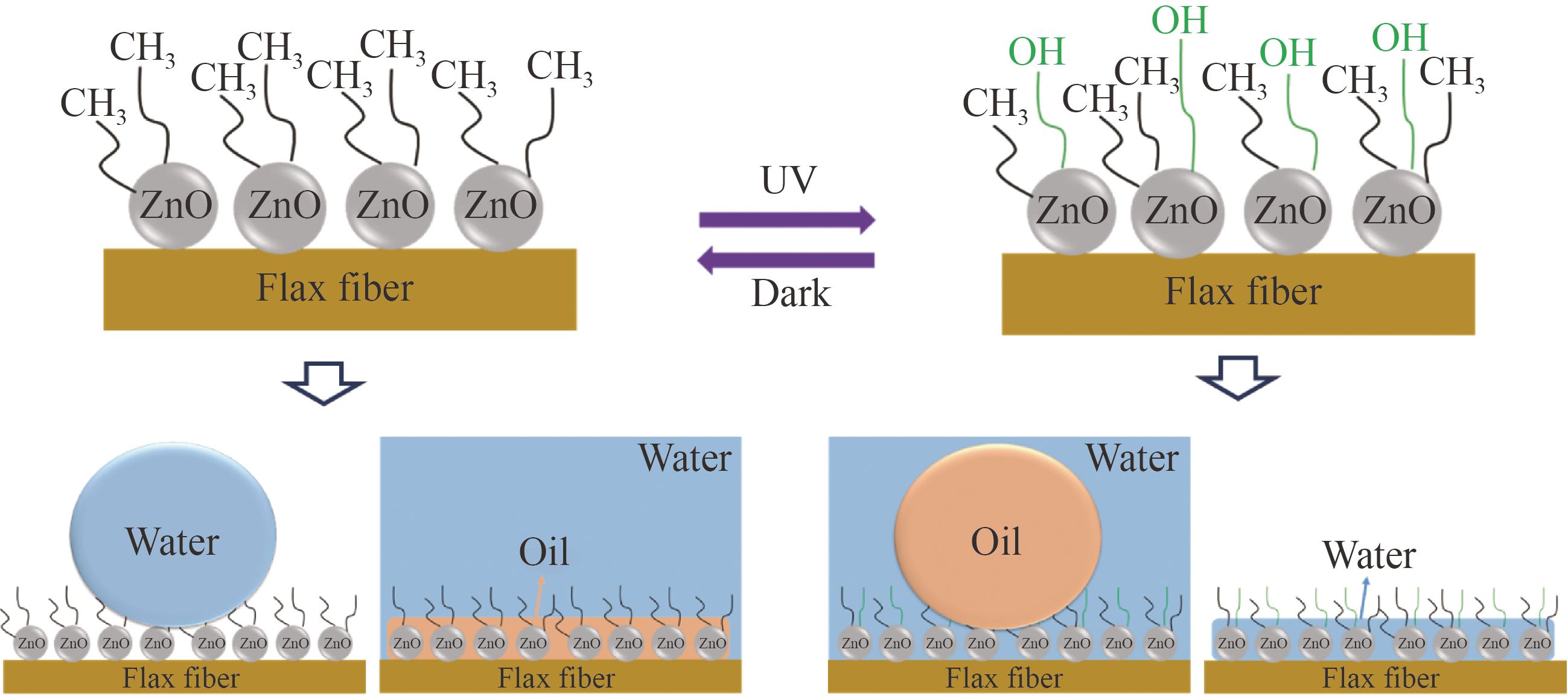

Graphical abstract

Keywords

Flax fiber / Switchable wettability / ZnO-HDTMS coating / Oil-water separation

References

[1] Agrawal N , Tan J S J , Low P S , Fong E W M , Lai Y , Chen Z . (2019). Green synthesis of robust superhydrophobic antibacterial and UV-blocking cotton fabrics by a dual-stage silanization approach. Advanced Materials Interfaces, 6( 11): 1900032

[2] Ao C , Hu R , Zhao J , Zhang X , Li Q , Xia T , Zhang W , Lu C . (2018). Reusable, salt-tolerant and superhydrophilic cellulose hydrogel-coated mesh for efficient gravity-driven oil/water separation. Chemical Engineering Journal, 338 : 271– 277

[3] Babamiri O , Vanaei A , Guo X , Wu P , Richter A , Ng K . (2021). Numerical simulation of water quality and self-purification in a mountainous river using QUAL2KW. Journal of Environmental Informatics, 37( 1): 26– 35

[4] Baig U , Faizan M , Dastageer M A . (2021). Polyimide based super-wettable membranes/materials for high performance oil/water mixture and emulsion separation: A review. Advances in Colloid and Interface Science, 297 : 102525

[5] Bi H , An C , Chen X , Owens E , Lee K . (2020). Investigation into the oil removal from sand using a surface washing agent under different environmental conditions. Journal of Environmental Management, 275 : 111232

[6] Boulos L , Foruzanmehr M R , Tagnit-Hamou A , Elkoun S , Robert M . (2017). Wetting analysis and surface characterization of flax fibers modified with zirconia by sol-gel method. Surface and Coatings Technology, 313 : 407– 416

[7] Cao Y , Zhang B , Zhu Z , Rostami M , Dong G , Ling J , Lee K , Greer C W , Chen B . (2021). Access-dispersion-recovery strategy for enhanced mitigation of heavy crude oil pollution using magnetic nanoparticles decorated bacteria. Bioresource Technology, 337 : 125404

[8] Chen X , Huang G , An C , Feng R , Wu Y , Huang C . (2019a). Plasma-induced PAA-ZnO coated PVDF membrane for oily wastewater treatment: Preparation, optimization, and characterization through Taguchi OA design and synchrotron-based X-ray analysis. Journal of Membrane Science, 582 : 70– 82

[9] Chen X , Huang G , An C , Feng R , Wu Y , Huang C . (2022). Superwetting polyethersulfone membrane functionalized with ZrO₂ nanoparticles for polycyclic aromatic hydrocarbon removal. Journal of Materials Science and Technology, 98 : 14– 25

[10] Chen X , Huang G , An C , Feng R , Yao Y , Zhao S , Huang C , Wu Y . (2019b). Plasma-induced poly(acrylic acid)-TiO₂ coated polyvinylidene fluoride membrane for produced water treatment: Synchrotron X-Ray, optimization, and insight studies. Journal of Cleaner Production, 227 : 772– 783

[11] Dong T , Xu G , Wang F . (2015). Adsorption and adhesiveness of kapok fiber to different oils. Journal of Hazardous Materials, 296 : 101– 111

[12] Doshi B , Sillanpää M , Kalliola S . (2018). A review of bio-based materials for oil spill treatment. Water Research, 135 : 262– 277

[13] Karoyo A H , Dehabadi L , Alabi W , Simonson C J , Wilson L D . (2020). Hydration and sorption properties of raw and milled flax fibers. ACS Omega, 5( 11): 6113– 6121

[14] Kazemi F , Jafarzadeh Y , Masoumi S , Rostamizadeh M . (2021). Oil-in-water emulsion separation by PVC membranes embedded with GO-ZnO nanoparticles. Journal of Environmental Chemical Engineering, 9( 1): 104992

[15] Li F , Wang Z , Huang S , Pan Y , Zhao X . (2018a). Flexible, durable, and unconditioned superoleophobic/superhydrophilic surfaces for controllable transport and oil–water separation. Advanced Functional Materials, 28( 20): 1706867

[16] Li J J , Zhou Y N , Luo Z H . (2018b). Polymeric materials with switchable superwettability for controllable oil/water separation: A comprehensive review. Progress in Polymer Science, 87 : 1– 33

[17] Liang Y , Huang G , Xin X , Yao Y , Li Y , Yin J , Li X , Wu Y , Gao S . (2022). Black titanium dioxide nanomaterials for photocatalytic removal of pollutants: A review. Journal of Materials Science and Technology, 112 : 239– 262

[18] Liu Y , Huang G , An C , Chen X , Zhang P , Feng R , Xiong W . (2020). Use of Nano-TiO₂ self-assembled flax fiber as a new initiative for immiscible oil/water separation. Journal of Cleaner Production, 249 : 119352

[19] Mahmoud M A . (2020). Oil spill cleanup by raw flax fiber: Modification effect, sorption isotherm, kinetics and thermodynamics. Arabian Journal of Chemistry, 13( 6): 5553– 5563

[20] Medina-Sandoval C F , Valencia-Dávila J A , Combariza M Y , Blanco-Tirado C . (2018). Separation of asphaltene-stabilized water in oil emulsions and immiscible oil/water mixtures using a hydrophobic cellulosic membrane. Fuel, 231 : 297– 306

[21] Nine M J , Kabiri S , Sumona A K , Tung T T , Moussa M M , Losic D . (2020). Superhydrophobic/superoleophilic natural fibres for continuous oil-water separation and interfacial dye-adsorption. Separation and Purification Technology, 233 : 116062

[22] Rodrigues M , Martins R , Rogeiro J , Fortunato A , Oliveira A , Cravo A , Jacob J , Rosa A , Azevedo A , Freire P . (2021). A web-based observatory for biogeochemical assessment in coastal regions. Journal of Environmental Informatics, 38( 1): 1– 15

[23] Talebizadehsardari P Seyfi J Hejazi I Eyvazian A Khodaie M Seifi S Davachi S M Bahmanpour H ( 2020). Enhanced chemical and mechanical durability of superhydrophobic and superoleophilic nanocomposite coatings on cotton fabric for reusable oil/water separation applications. Colloids and Surfaces. A, Physicochemical and Engineering Aspects, 603: 125204

[24] Udayakumar K V , Gore P M , Kandasubramanian B . (2021). Foamed materials for oil-water separation. Chemical Engineering Journal Advances, 5 : 100076

[25] Wang X , Xu S , Tan Y , Du J , Wang J . (2016). Synthesis and characterization of a porous and hydrophobic cellulose-based composite for efficient and fast oil-water separation. Carbohydrate Polymers, 140 : 188– 194

[26] Wang Z , An C , Chen X , Lee K , Zhang B , Feng Q . (2021). Disposable masks release microplastics to the aqueous environment with exacerbation by natural weathering. Journal of Hazardous Materials, 417 : 126036

[27] Xie A , Cui J , Chen Y , Lang J , Li C , Yan Y , Dai J . (2019). One-step facile fabrication of sustainable cellulose membrane with superhydrophobicity via a sol-gel strategy for efficient oil/water separation. Surface and Coatings Technology, 361 : 19– 26

[28] Yan L , Li J , Li W , Zha F , Feng H , Hu D . (2016). A photo-induced ZnO coated mesh for on-demand oil/water separation based on switchable wettability. Materials Letters, 163 : 247– 249

[29] Yin J , Huang G , An C , Feng R . (2021). Nanocellulose enhances the dispersion and toxicity of ZnO NPs to green algae Eremosphaera viridis. Environmental Science. Nano, 9 : 393– 405

[30] Yong J , Chen F , Yang Q , Fang Y , Huo J , Hou X . (2015). Femtosecond laser induced hierarchical ZnO superhydrophobic surfaces with switchable wettability. Chemical Communications (Cambridge), 51( 48): 9813– 9816

[31] Yoo Y , Park H , Choi Y , Jung J , Song H , Kim J , Cho H . (2021). Method for determining optimum operational conditions of microbubble scrubber using image processing. Journal of Environmental Informatics, 38( 2): 83– 92

[32] Yue R , An C , Ye Z , Gao S , Chen X , Zhang B , Lee K , Bi H . (2022). A pH-responsive phosphoprotein surface washing fluid for cleaning oiled shoreline: Performance evaluation, biotoxicity analysis, and molecular dynamic simulation. Chemical Engineering Journal, 437 : 135336

[33] Zhang J , Chen R , Liu J , Liu Q , Yu J , Zhang H , Jing X , Zhang M , Wang J . (2019). Construction of ZnO@Co₃O₄-loaded nickel foam with abrasion resistance and chemical stability for oil/water separation. Surface and Coatings Technology, 357 : 244– 251

[34] Zhu Z , Song X , Cao Y , Chen B , Lee K , Zhang B . (2022). Recent advancement in the development of new dispersants as oil spill treating agents. Current Opinion in Chemical Engineering, 36 : 100770

Acknowledgements

This research was supported by the Natural Science and Engineering Research Council of Canada, the Canada Foundation for Innovation (CFI) (36668), the Canada Research Chairs Program (CRC), the Western Diversification Program (Canada) (15269), and the Petroleum Technology Research Centre. The authors are particularly thankful to the beamlines of Very Sensitive Elemental and Structural Probe Employing Radiation from a Synchrotron (VESPERS) and Mid Infrared Spectromicroscopy (MID-IR) at Canadian Light Source for providing support in measurements and analysis. Research about XRF and FTIR described in this paper was performed at the Canadian Light Source.

Electronic Supplementary Material

Supplementary material is available in the online version of this article at https://doi.org/10.1007/s11783-022-1588-6 and is accessible for authorized users.
