Finding gradients is a crucial step in training machine learning models. For quantum neural networks, computing gradients using the parameter-shift rule requires calculating the cost function twice for each adjustable parameter in the network. When the total number of parameters is large, the quantum circuit must be repeatedly adjusted and executed, leading to significant computational overhead. Here, we propose an approach to compute all gradients using only a single circuit, significantly reducing both the circuit depth and the number of classical registers required. Although the theoretical complexity of gradient calculation and the total number of measurements are not reduced by this approach, a considerable reduction in the number of unique circuit compilations and job submissions is achieved. We experimentally validate our approach on both quantum simulators and IBM’s real quantum hardware, demonstrating that our method significantly reduces circuit compilation time compared to the conventional approach, resulting in a substantial speedup in total runtime.

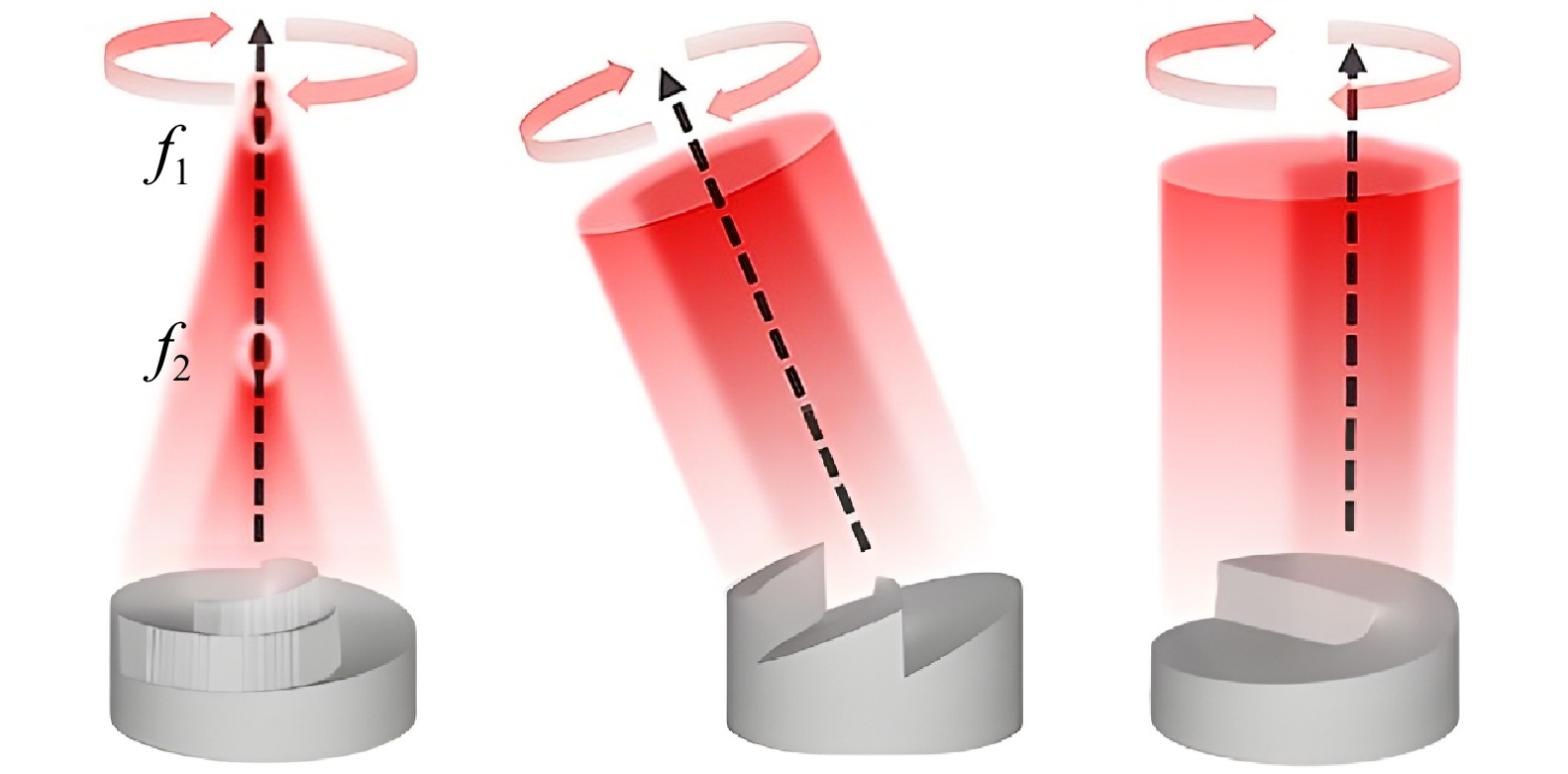

Acoustic vortex beams, which inherently carry orbital angular momentum, are emerging as powerful tools for applications ranging from particle manipulation to biomedical imaging and underwater communication. However, generating such beams with precise spatial control remains challenging and often requires complex transducer arrays. In this study, we introduce a unified design framework for tailoring underwater acoustic vortex beams using 3D-printed metalenses. By engineering the local phase profile of the metalens, this approach enables distinct functionalities, including the generation of tilted vortex beams, precise control of off-axis singularities, and the creation of dual-focus vortex beams via coaxial spiral zones. Furthermore, a frequency multiplexing strategy is implemented in the dual-focus configuration, enabling independent control of vortex foci at distinct frequencies using a single compact lens. The ability of these metalenses to shape acoustic pressure fields with high precision is validated through both numerical simulations and underwater measurements. This work demonstrates a versatile, fabrication-ready platform for the tunable spatial and spectral control of acoustic vortex beams, offering new possibilities for applications in acoustofluidics, therapeutic ultrasound, and underwater sensing and communication.

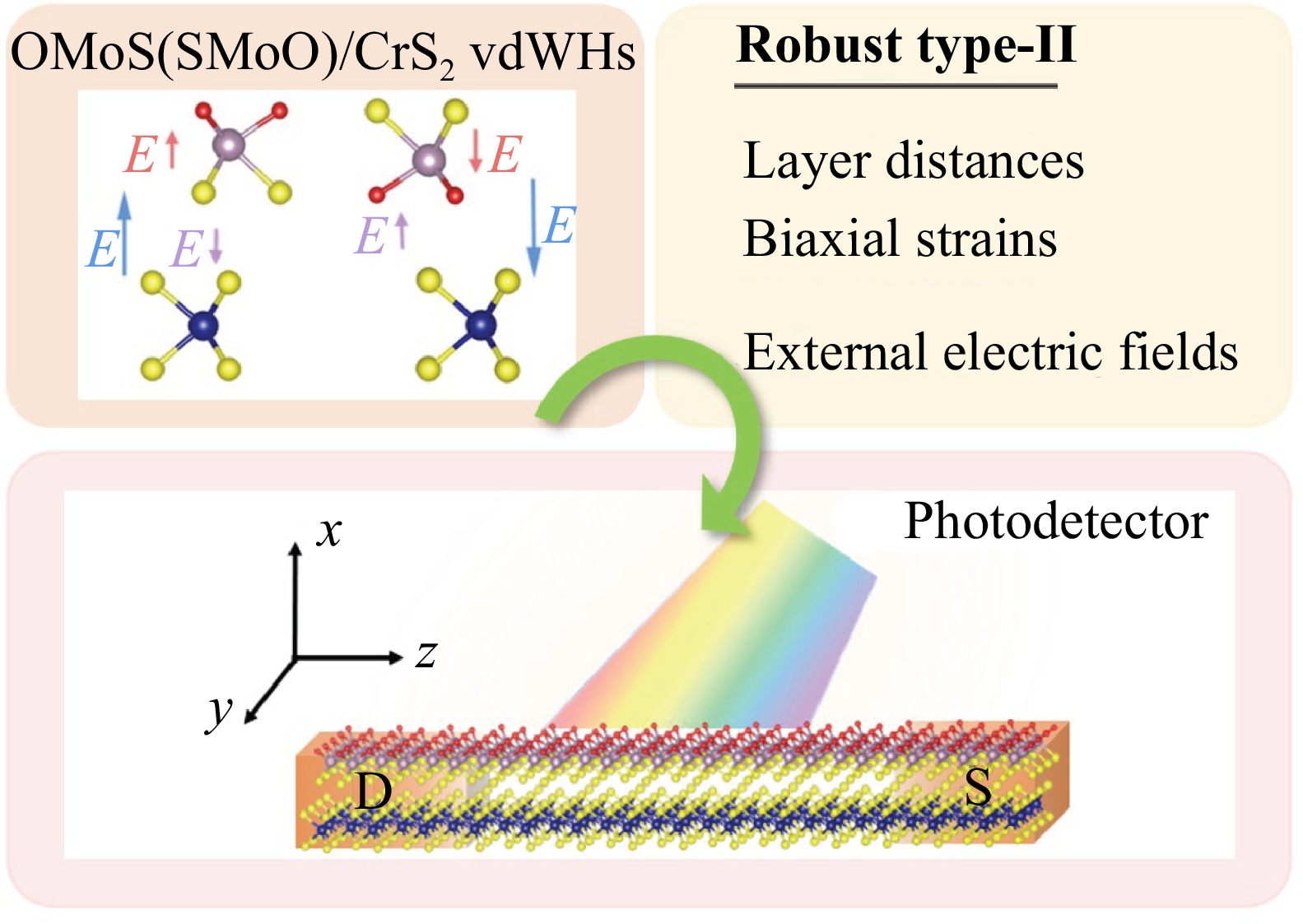

Two-dimensional (2D) Janus semiconductor materials have attracted widespread research interest due to their unique asymmetric structures and promising optoelectronic applications. Here, we investigate the interfacial effects on band alignment and photodetection performance by constructing van der Waals heterostructures (vdWHs) based on monolayer CrS₂ and Janus MoSO, alongside engineering the interlayer distance, biaxial strain, and external electric field. The S-terminated and O-terminated interfaces induce direct and indirect band structures, respectively, while maintaining a robust type-II band alignment. Moreover, the O-terminated interface vdWH photodetector exhibits higher photocurrent density and external quantum efficiency compared with the S-terminated counterpart. These results provide an effective strategy for designing interface-engineered optoelectronic devices based on 2D Janus semiconductors.

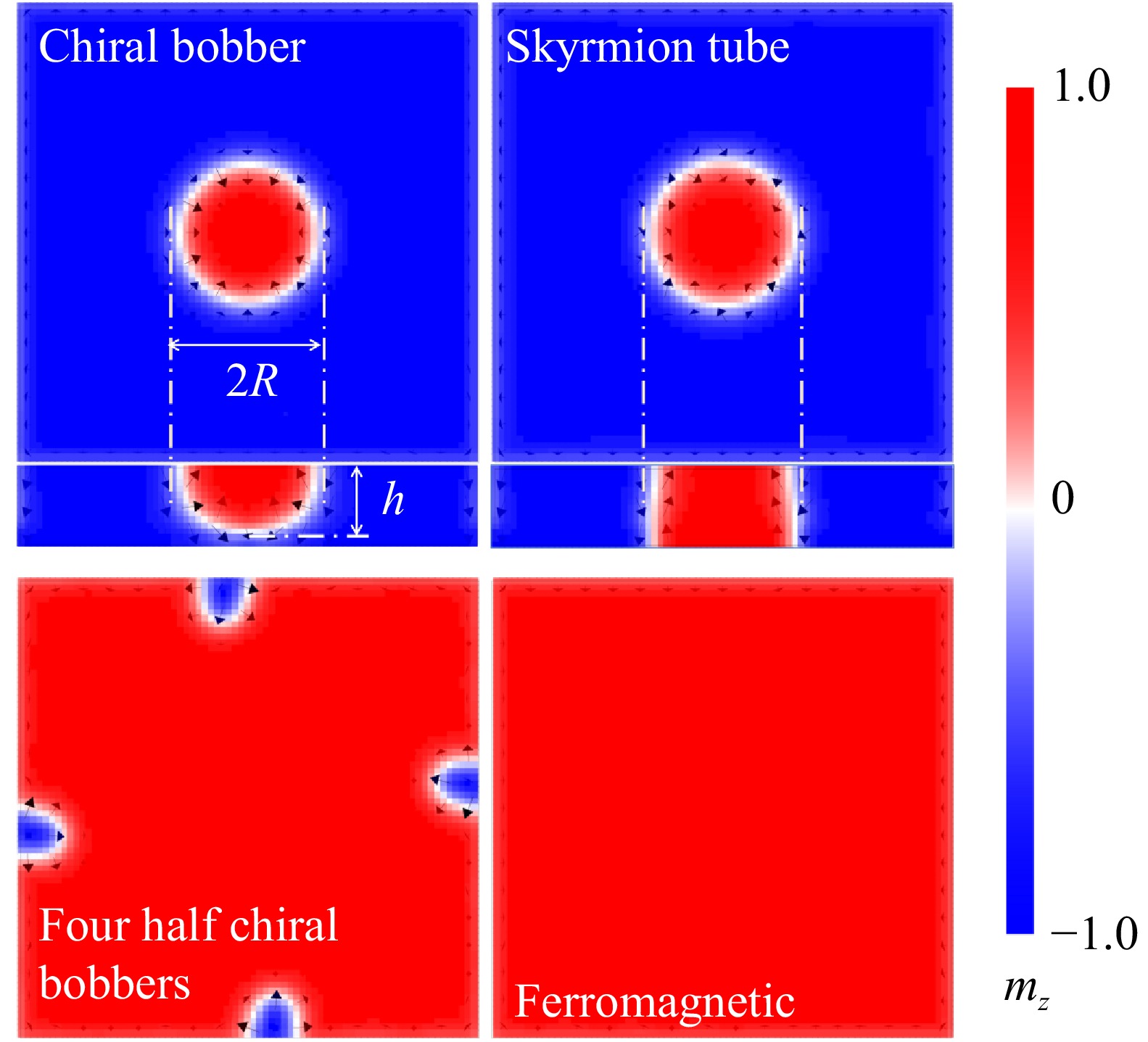

Magnetic chiral bobbers (CBs) are three-dimensional (3D) topological spin textures that consist of a tapered skyrmion tube terminating in a Bloch point, promising applications in high-density spintronics. However, the mechanisms controlling their size and the dynamics of their annihilation are still not fully understood. In this study, we present an analytical model that predicts the radius R of the CB as a function of the external magnetic field, the Dzyaloshinskii−Moriya interaction (DMI), the magnetic anisotropy, and the exchange interaction. The micromagnetic simulations validate this model across a broad range of parameters. We also identify two mechanisms of annihilation of CBs: (i) a droplet-like instability that occurs under rapid changes in the magnetic field, which we describe using a proposed magnetic Weber number We and its critical field step scaling; and (ii) Bloch point depinning mechanism at interfaces, for which we determine the threshold magnetic field B_th for annihilation. Importantly, we uncover a novel fragmentation pathway in which CBs transform into skyrmion tubes, then into half-CBs, and finally into ferromagnetic states. These findings lay the groundwork for understanding and manipulating 3D CBs as next-generation devices.

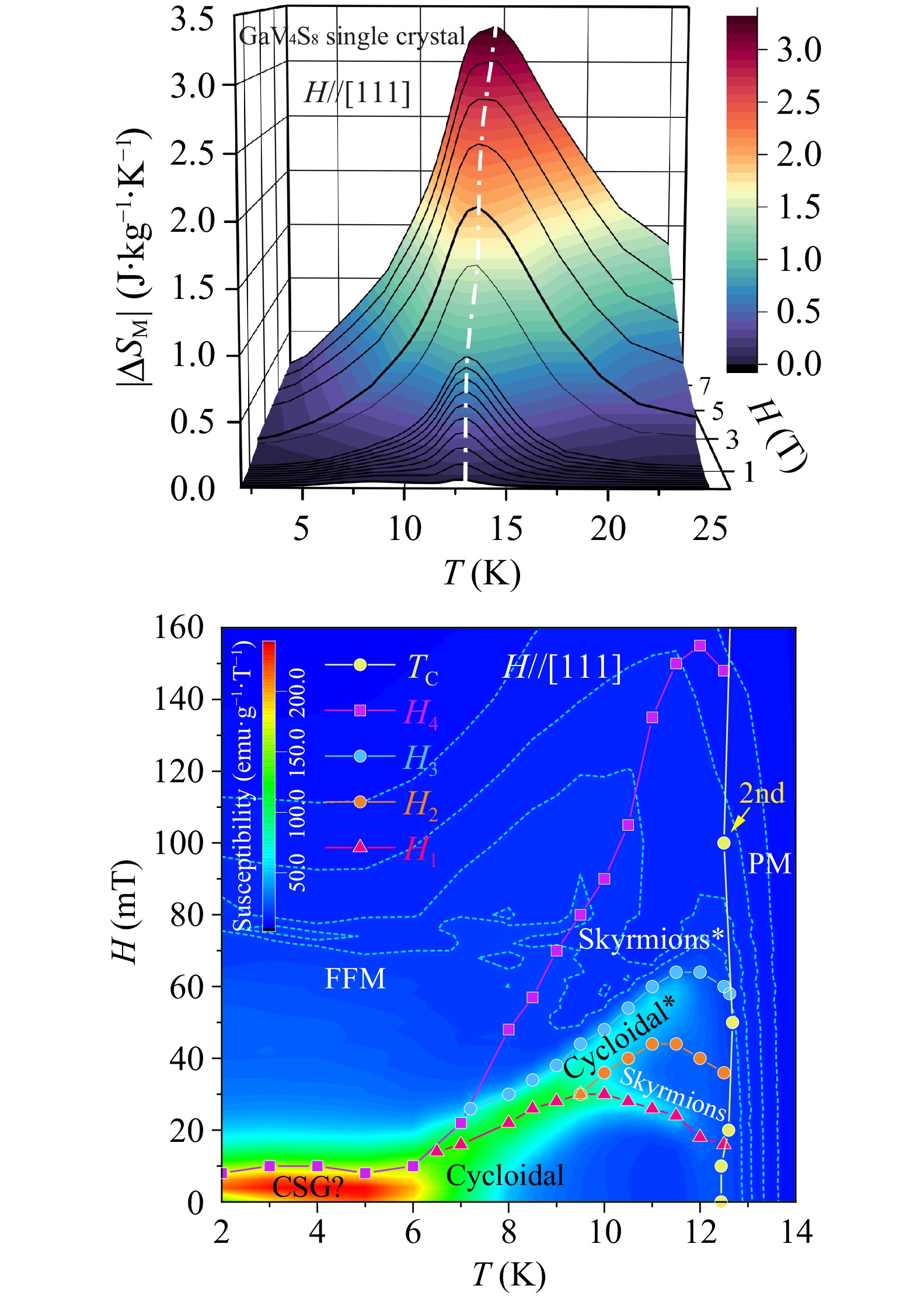

Lacunar spinel GaV₄S₈ is a crucial material for spintronic applications due to its emergent rare Néel-type skyrmions and unique orbitally-driven ferroelectric polarization. Nevertheless, persistent debates surround its magnetic properties and ground state, espcially in single crystals. In this study, we systematically investigate the anisotropic magnetism and phase diagrams of single-crystal GaV₄S₈ by combining magnetic entropy analysis and universality scaling laws. The critical exponents for single-crystal GaV₄S₈ are determined to be \beta =0.434(5), \gamma =1.768(3), and \delta =5.025(1) at critical temperature T_{\mathrm{C}}=12.9(1) K. These exponents cannot be classified into any conventional universality class, indicating the coexistence of multiple magnetic interactions within this material. Utilizing universality scaling, we construct phase diagrams of single-crystal GaV₄S₈ for three distinct field orientations: H//[111], H//[110], and H//[100]. For H//[111] corresponding to the easy magnetic axis, the spin dimensionality analysis indicates a short-range interaction that follows J\left(r\right)\sim r^{-5.21(4)}. Moreover, the phase diagrams reveal various magnetic phases, particularly a ground state of a possible cluster spin-glass in all directions. These findings elucidate the intricate magnetic interactions in single-crystal GaV₄S₈, which are crucial for understanding the formation of diverse non-collinear spin-ordered phases and potential applications in this system.

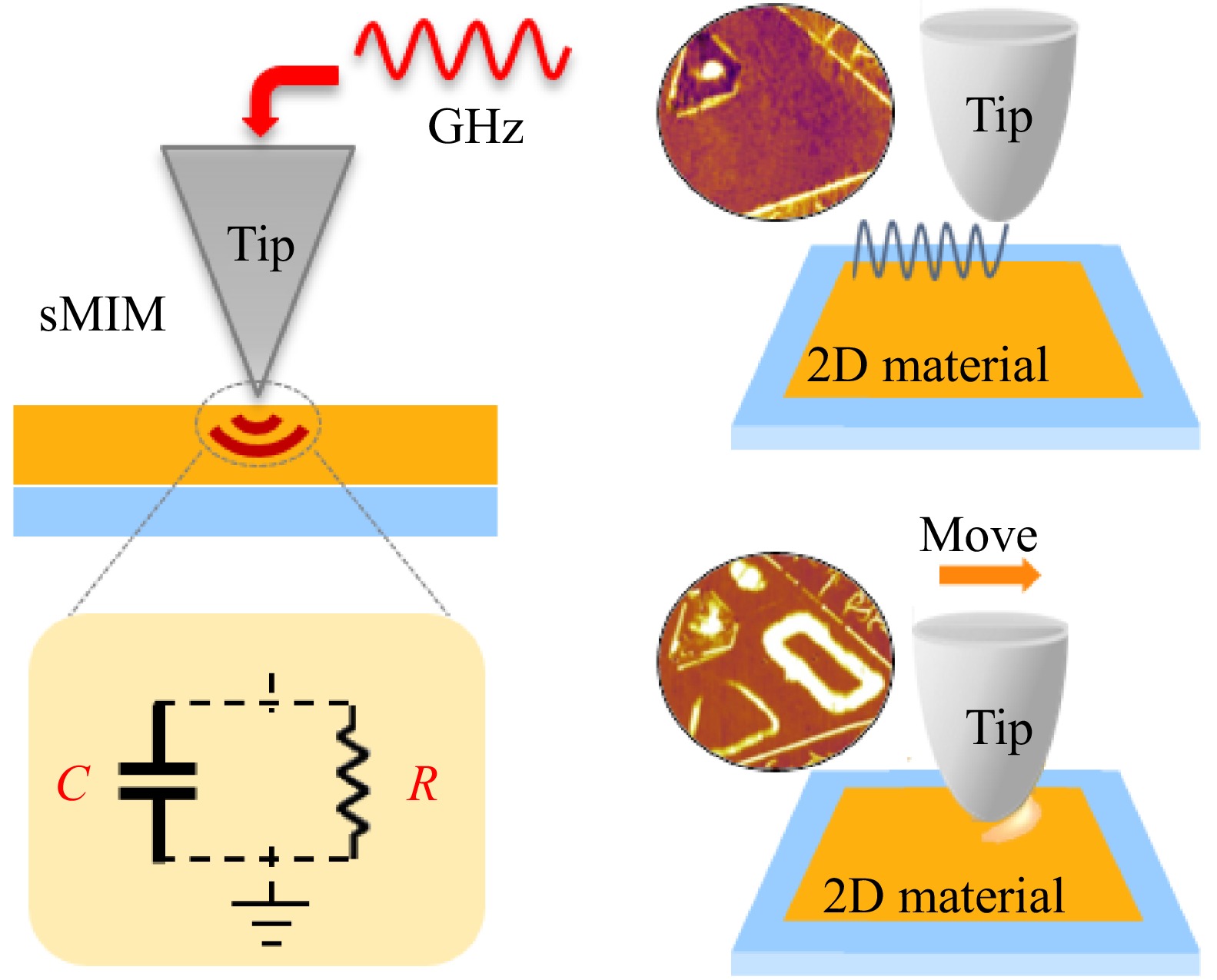

The delicate interfacial conditions and behaviors play critical roles in determining the valuable physical properties of two-dimensional materials and their heterostructures on substrates. However, directly probing these complex interfacial conditions remains challenging. Here, we reveal the coupled in-plane strain and out-of-plane bonding conditions in strain-engineered WS₂ flakes by combining dual-harmonic electrostatic force microscopy (DH-EFM) and scanning microwave impedance microscopy (sMIM). A striking contradiction is observed between the compressive-strain-induced larger bandgap (lower electrical conductivity) detected by DH-EFM, and the enhanced conductivity probed by sMIM. Comparative measurements under different sMIM modes demonstrate that this contradiction originates from a tip-loading-force-induced dynamic puckering effect, which is governed by the interfacial bonding strength. Furthermore, the progressive accumulation and subsequent release of conductivity during forward/backward sMIM-contact scans further confirm this dynamic puckering behavior, revealing pronounced differences in interfacial conditions between the open- and closed-ring regions of WS₂. This work establishes the correlation between electrical properties and interfacial conditions, and provides fundamental insights for interface-engineered devices.
